Tilt factor in deform

Submitted by jagan1mohan on Mon, 06/14/2021 - 18:17

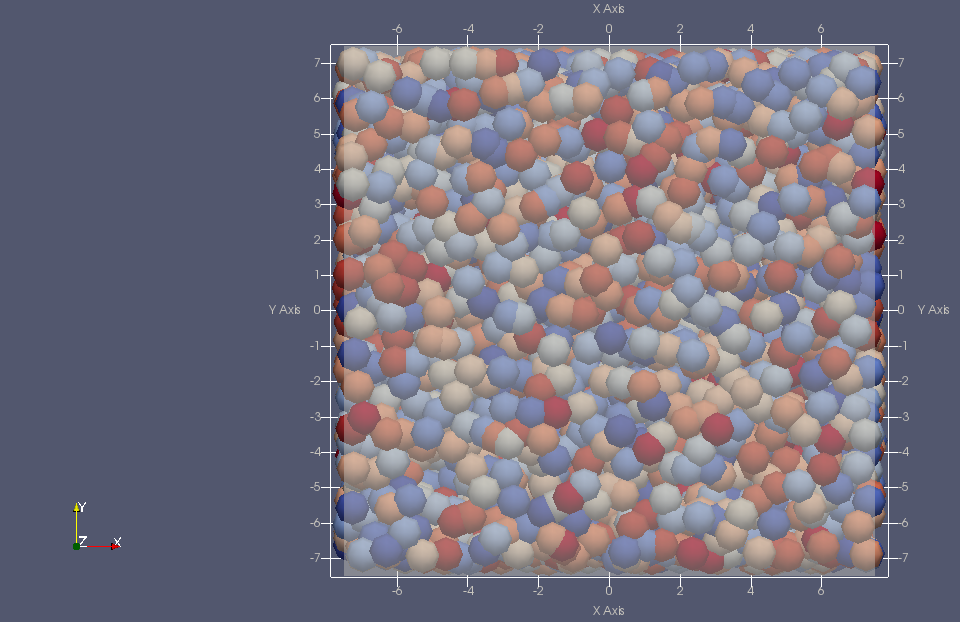

Hello Team, I'm using fix deform to shear a triclinic periodic cube which is symmetric about origin. Side length of cube in x (say) is -3.5*partDia to 3.5*partDia. Please see attached image t_0.png for initial state, note the coordinate system. I'm using

fix boxDeform all deform 1 xy erate 31 remap v

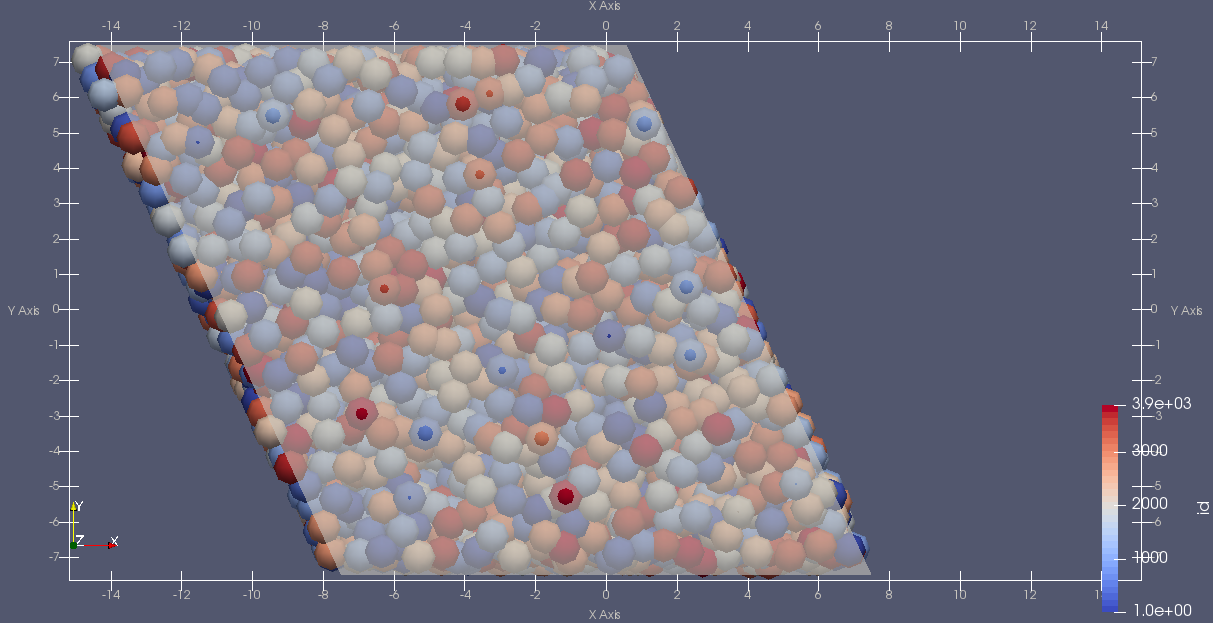

and everything works fine. In this, we see that the box flips when top corner travels a distance of half the box width as shown in attached image t_t.png in the x-direction.

1. Can we alter this travel distance to a user-defined value, say, quarter of a box length?

Thank you.

AttachmentSize
Image icon State after the box has just flipped408.58 KB
Image icon initial state407.2 KB
