Hi

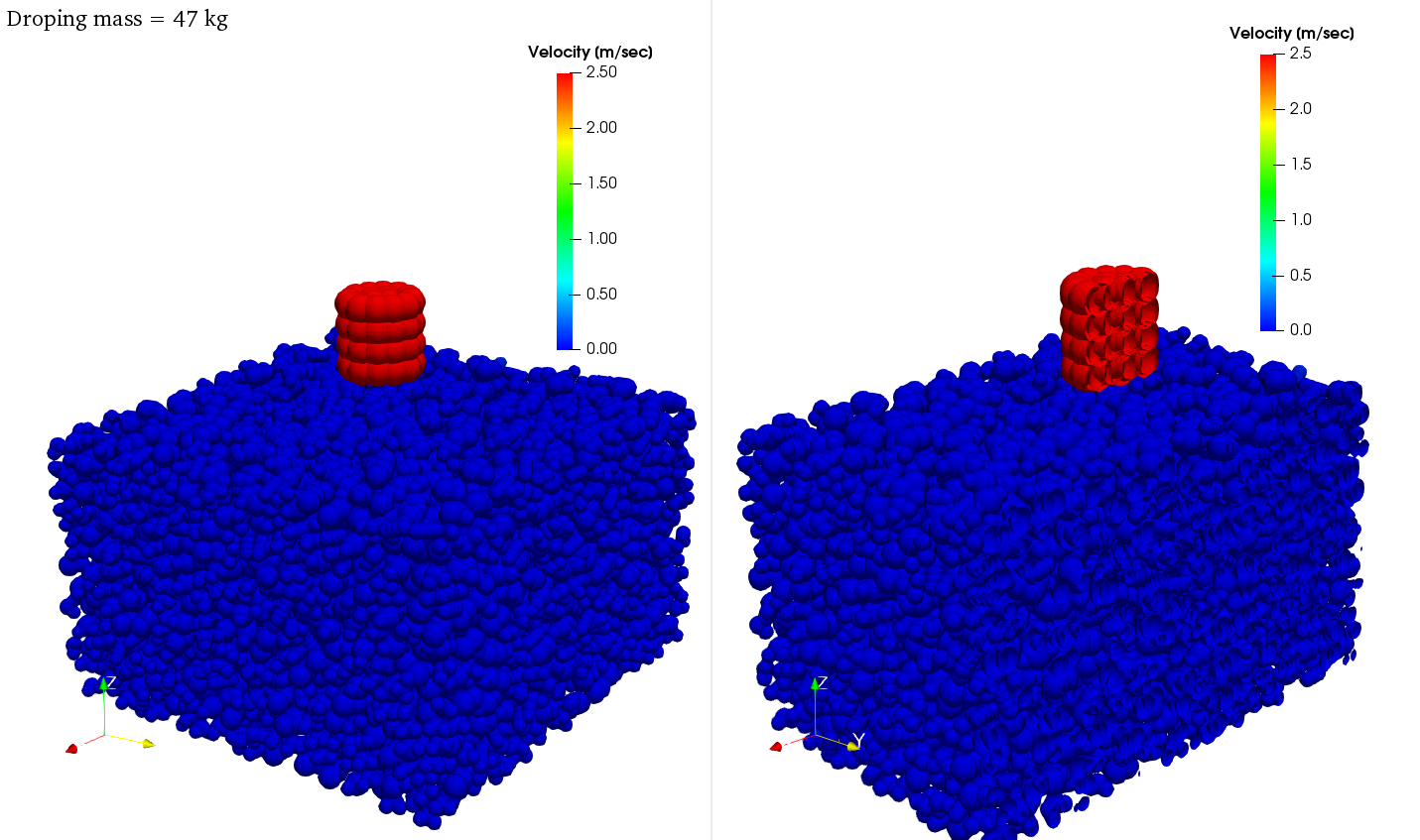

I was doing am impact simulation with multi-sphere particle(see figure below). I wanted a plot of Kinetic energy for each multi-sphere particle and for that I have used the following command
--------------------------------------------------------------------------------------
compute ke_clump all ke/multisphere
dump dmp all custom/vtk ${nstep} post/particle_*.vtk id type mol x y z ix iy iz vx vy vz fx fy fz omegax omegay omegaz radius c_overlap c_ke_clump
--------------------------------------------------------------------------------------
I was unable to dump the kinetic energy of each particle in vtk format. Is there any way to see kinetic energy of each particle in paraview.
hi kumar try using the print
hi kumar try using the print command to print your results in a csv file
https://www.cfdem.com/media/DEM/docu/fix_print.html?highlight=fix%20pri…
