How to display the actual size of particles

Submitted by tutu on Wed, 05/10/2023 - 10:03

I got two kinds of particles in the .liggghts output. I used 'lpp' and opened in Paraview, but it displayed in the same size.
I tried 3D Glyphs filter with the 'scaling' option. The particles size changed but they are still in the same size.

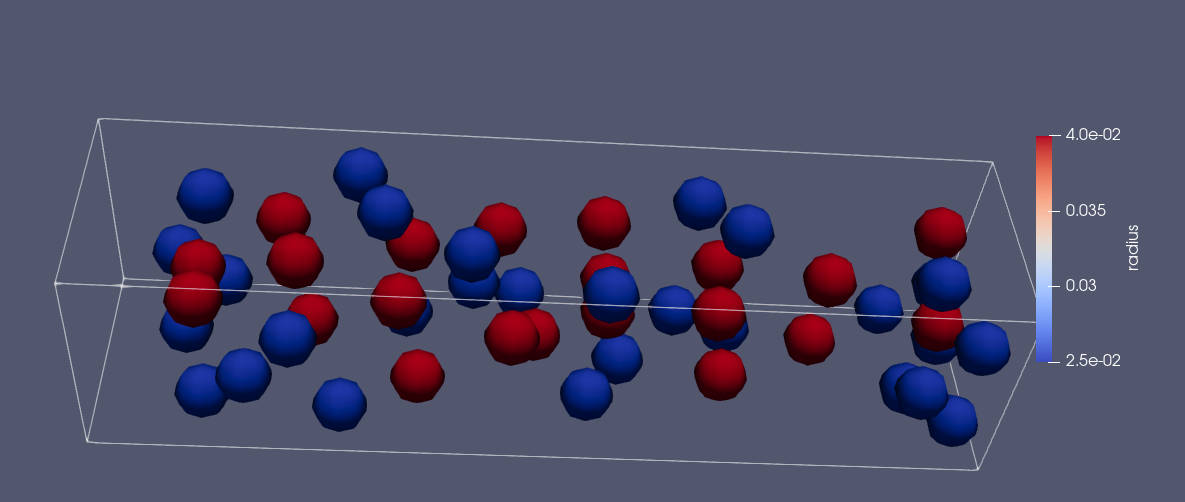

Image icon radius.png165.25 KB

rpareshr | Tue, 11/21/2023 - 05:21


You can see by selecting "Point Gaussian" and further gaussian setting as following in Point Gaussian.
Gaussian Radius : 1
Shader Preset : Sphere

tick check mark box : Use scale Array

Gaussian Scale Array : radius
