DEM only simulation - Add dragforce - Recirculation

Submitted by sohaibmalik on Wed, 11/17/2021 - 22:40

Hi Everyone,

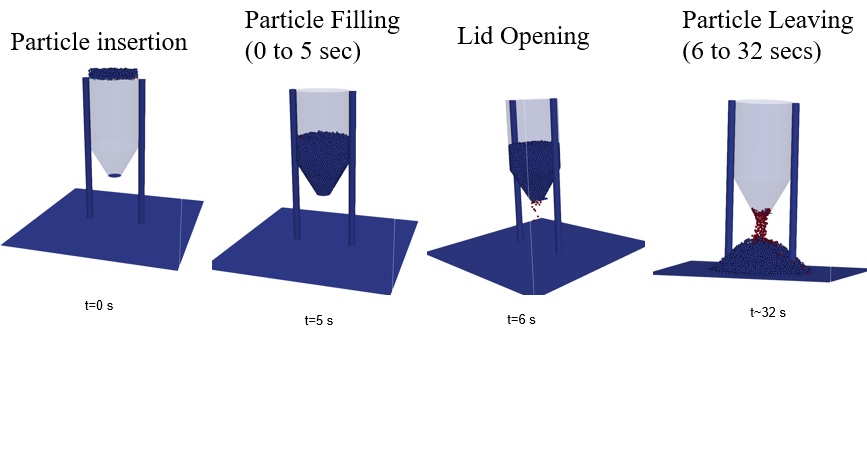

I am a newbie using LIGGGHTS. My problem would be similar to a steady state flow of spherical particles through a hopper domain with conical bottom, so I took it as a start. I have been able to run a simulation where I inserted the particles, and let them fall under gravity (picture attached)
However, I have not been able to run it in a "Recirculation" mode where the particles leaving the domain would be reinserted from the top. Can any body help me out with a means to do that.

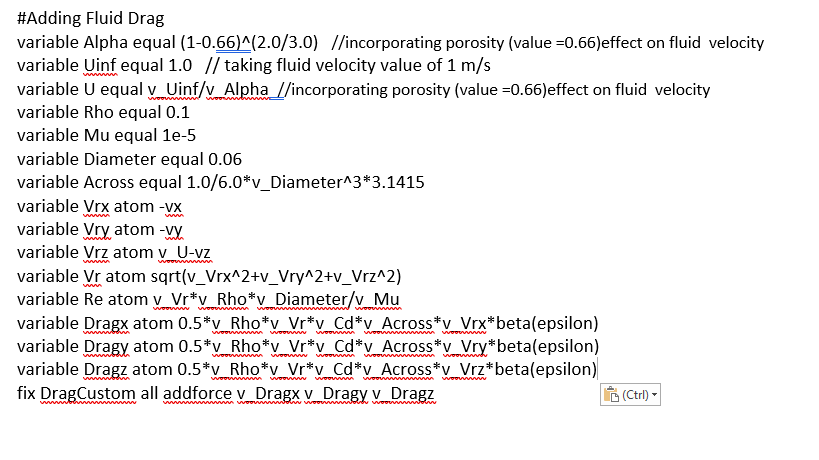

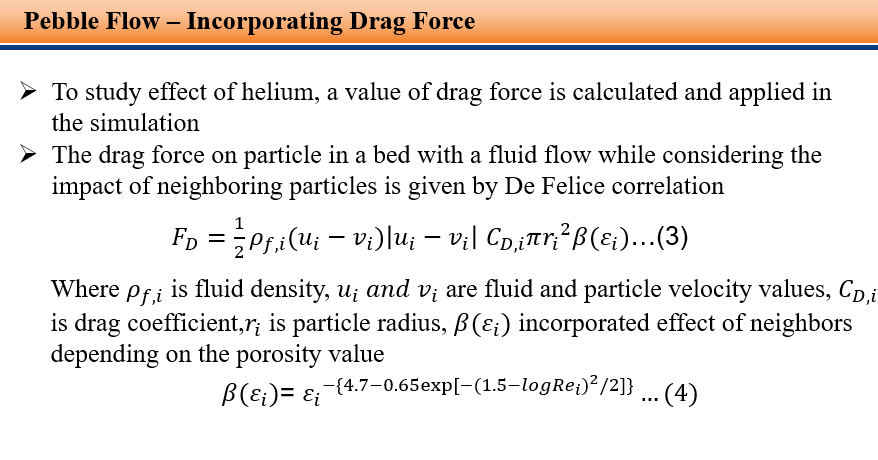

Further, while running DEM only simulation, I am also trying to add drag force using "Add force" command and giving three drag components as an argument. For finding drag force, I am using De-Felice correlation which includes the effect of neighboring particles by a function beta(epsilon) where epsilon is the porosity value. (picture attached). The part of LIGGGHTS script I used to add drag force is attached as a pic. It takes velocity of particle at each time step and then subtracting from the fluid velocity and multiplying with Drag coefficient, and other factors (shown in the pic). The velocity of the fluid, I am using is superficial velocity found from massflow rate and Area of cylindrical cross-section of hopper (which is not realistic).
So, to summarize, I would highly appreciate help from senior group members to fix the issues:
- Finding packing fraction/porosity values in the domain
- Method to add realistic drag value
-Running the simulation in recirculation mode.

P.S. I have not been able to access the files shared in many posts, it takes me to a page where it says that the file not found. Could anyone help me in accessing the files in the posts in this forum.

I would highly appreciate.

Thanks,
Sohaib

mschramm | Thu, 11/18/2021 - 03:45

Hello,
What boundary types are you using? There is a boundary type "p" that allows periodic domains. So if you set the boundary as f f p, that will "fix" the boundary in the x and y direction and periodic in the z direction. What size "grid" are you wanting to use to calculate the porosity? Adding sub "zones" to have sub domain accuracy of the porosity values may cause so much over head that it would be faster to run this in CFD-DEM.

sohaibmalik | Thu, 11/18/2021 - 08:53

Hi Matt,
Thank you for your quick response and its really heartening to see senior members helping new learners.
I have included LIGGGHTS script below for some details. I would try to use "periodic" boundary condition, as you suggested for recirculation of particles.

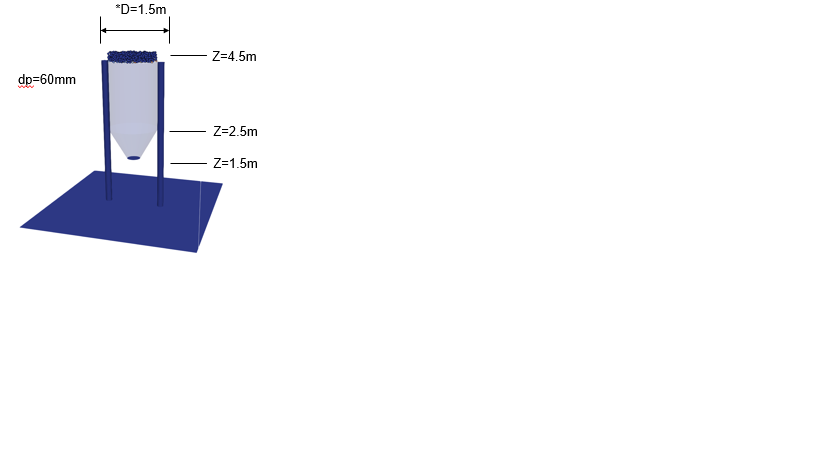

For grid size, I would say I have no preference or pardon me if I am not able to find a link between porosity calculation and grid size value. I have attached picture of domain that is 1.5m in diameter and around 3 m in height, and particle diameter is around 60mm. I would appreciate if guidance may be provided on selecting grid size and finding porosity value which would help in finding realistic drag force to apply.
Thank you again.
Sohaib

###################################Header for General commands#######################################################

atom_style granular #Simulation of particles

boundary f f f #fixed boundaries -> particles will be deleted if leaving the simulation box

units si

communicate single vel yes #default

newton off #default

###################################System variables##################################################################

#Definition of boundaries
variable xmin equal -2.55
variable xmax equal 2.55

variable ymin equal -2.55
variable ymax equal 2.55

variable zmin equal -0.05
variable zmax equal 5.0

#Definition of the timestep

variable dt equal 1e-4 #timestep = 0.0001 second; Each iteration step represents 0.0001 seconds.

###################################Specific variables for current simulation#########################################

variable natoms equal 2 #1 -> particle #2->hopper,frame and ground, lid

####variable for material properties####

####Young Modulus####
variable youngmodulus1 equal 1e8 #N/mm²
variable youngmodulus2 equal 1e8 #N/mm²

####Poission ratio####
variable poission1 equal 0.3
variable poission2 equal 0.3

####variable for contact properties####

####coefficient of restitution####
variable CoR11 equal 0.6
variable CoR12 equal 0.6
variable CoR21 equal 0.6
variable CoR22 equal 0.6

####sliding friction coefficient####
variable sf11 equal 0.3
variable sf12 equal 0.36
variable sf21 equal 0.36
variable sf22 equal 0.0

####rolling friction coefficient####
variable rf11 equal 0.8
variable rf12 equal 0.8
variable rf21 equal 0.8
variable rf22 equal 0.8

####variable for particle####

#Number of particle radius
variable nradii equal 1

variable radius1 equal 0.0300 #m

variable frac1 equal 1.0 #100%

variable density equal 4000 #kg/m³

####filling parameters####

variable filltime equal 5 #seconds

variable fillmass equal 5000 #kg

variable fillmassrate equal ${fillmass}/${filltime} #kg/s

variable fillsteps equal ${filltime}/${dt} #Transform time to iteration steps

####settle time####

variable settletime equal 1 #second

variable settlesteps equal ${settletime}/${dt} #Transform time to iteration steps

####open parameter of the lid####

variable openvel equal 0.4 #m/s

variable opentime equal 1 #second

variable opensteps equal ${opentime}/${dt} #Transform time to iteration steps

####discharge time#####

variable dischargetime equal 25 #seconds

variable dischargesteps equal ${dischargetime}/${dt} #Transform time to iteration steps

###################################Definition of simulationbox#######################################################

region reg block ${xmin} ${xmax} ${ymin} ${ymax} ${zmin} ${zmax} units box

create_box 2 reg

neighbor 0.004 bin #default

neigh_modify delay 0 #default

#################################Definition of the contact models####################################################

pair_style gran model hertz tangential history rolling_friction epsd2 #contact model

pair_coeff * * #default

timestep ${dt}

fix integrator all nve/sphere #default

fix gravi all gravity 9.81 vector 0.0 0.0 -1.0 #gravity of 9.81 m/s² in negative z direction

###################################Definition of Material properties#################################################

fix m1 all property/global youngsModulus peratomtype ${youngmodulus1} ${youngmodulus2}

fix m2 all property/global poissonsRatio peratomtype ${poission1} ${poission2}

fix m3 all property/global coefficientRestitution peratomtypepair ${natoms} 0.6 0.6 0.6 0.6

fix m4 all property/global coefficientFriction peratomtypepair ${natoms} ${sf11} ${sf12} ${sf21} ${sf22}

fix m5 all property/global coefficientRollingFriction peratomtypepair ${natoms} ${rf11} ${rf12} ${rf21} ${rf22}

###################################Generation and Loading of the Geometry .stl#######################################

fix silo all mesh/surface file Silo.stl type 2 scale 0.001 #load mesh from STL file. Type 2 for geometry. Scale down to transform mm to meters
fix lid all mesh/surface file Lid.stl type 2 scale 0.001
fix ground all mesh/surface file Ground.stl type 2 scale 0.001
fix frame all mesh/surface file Frame.stl type 2 scale 0.001

fix walls all wall/gran model hertz tangential history rolling_friction epsd2 mesh n_meshes 4 meshes silo lid ground frame

###################################Generation and Insertion of the particles#########################################

fix pts1 all particletemplate/sphere 10487 atom_type 1 density constant ${density} radius constant ${radius1}

fix pdd1 all particledistribution/discrete 32452867 ${nradii} pts1 ${frac1}

fix ins_mesh all mesh/surface/planar file Insertionsface.stl type 1 scale 0.001

fix ins all insert/stream seed 86028157 distributiontemplate pdd1 &
mass ${fillmass} massrate ${fillmassrate} overlapcheck yes all_in yes vel constant 0 0 -0.75 &
insertion_face ins_mesh extrude_length 0.25

#Adding Fluid Drag
variable Alpha equal (1-0.66)^(2.0/3.0)
variable Uinf equal 1.03
variable U equal v_Uinf/v_Alpha
variable Rho equal 1.65
variable Mu equal 3.86e-5
variable Diameter equal 0.06
variable Across equal 1.0/6.0*v_Diameter^3*3.1415
variable Vrx atom -vx
variable Vry atom -vy
variable Vrz atom v_U-vz
variable Vr atom sqrt(v_Vrx^2+v_Vry^2+v_Vrz^2)
variable Re atom v_U*v_Rho*v_Diameter/v_Mu #variable Re atom v_Vr*v_Rho*v_Diameter/v_Mu
variable Cd atom 0.44 #variable CdV atom (1+0.15*v_Re^0.687)*24/v_Re
#variable Cd atom 0.44*(v_Cdv<0.44)+v_Cdv*(v_Cdv>=0.44)
#variable Dragx atom 0.5*v_Rho*v_Vr*v_Cd*v_Across*v_Vrx
#variable Dragy atom 0.5*v_Rho*v_Vr*v_Cd*v_Across*v_Vry
variable Dragz atom 0.5*v_Rho*abs(v_Vrz)*v_Cd*v_Across*v_Vrz*9.109
fix adddrag1 all addforce 0 0 v_Dragz
#fix DragCustom all print 1000 "${v_Dragx} ${v_Dragy} ${v_Dragz}" screen no title "Dragx Dragy Dragz" file DragCustomf.txt

fix surface_mf all mesh/surface file Insertionsface.stl type 1 scale 0.001 move 0.0 0.0 0.0
fix surface_mf2 all mesh/surface file Lid.stl type 2 scale 0.001 move 0.0 0.0 0.0
fix mymassflow all massflow/mesh mesh surface_mf count multiple vec_side 0.0 0.0 -1.0 writeTime file massflow_particle_data.txt
fix mymassflow2 all massflow/mesh mesh surface_mf2 count multiple vec_side 0.0 0.0 -1.0 writeTime file massflow_particle_data2.txt
variable time equal step*dt # current simulation time (step and dt are built-in variables)
variable m equal f_mymassflow[1] # total mass that has crossed the mesh since simulation start
variable np equal f_mymassflow[2] # total number of particles that have crossed the mesh since simulation start
variable mdot equal f_mymassflow[3] # current mass flow rate
variable npdot equal f_mymassflow[4] # current particle flow rate

fix pmassout all print 1000 "${time} ${m} ${np} ${mdot} ${npdot}" screen no title "t mass particles massflow particlerate" file massflow.txt

variable time2 equal step*dt # current simulation time (step and dt are built-in variables)
variable m2 equal f_mymassflow2[1] # total mass that has crossed the mesh since simulation start
variable np2 equal f_mymassflow2[2] # total number of particles that have crossed the mesh since simulation start
variable mdot2 equal f_mymassflow2[3] # current mass flow rate
variable npdot2 equal f_mymassflow2[4] # current particle flow rate

fix pmassout all print 1000 "${time2} ${m2} ${np2} ${mdot2} ${npdot2}" screen no title "t mass particles massflow particlerate" file massflow2.txt

###################################Dumping of the data for post-processing to visualize############################

shell mkdir post

#Definition of the dumptime

variable dumptime equal 0.05 # Every 0.05 s 1 image

variable dumpstep equal ${dumptime}/${dt} #Transform to iteration steps

dump dmpparticle all custom/vtk ${dumpstep} post/particles_*.vtk id type x y z vx vy vz fx fy fz radius mass v_Dragz
dump dmpground all mesh/stl ${dumpstep} post/Ground*.stl ground
dump dmpsilo all mesh/stl ${dumpstep} post/Silo*.stl silo
dump dmpframe all mesh/stl ${dumpstep} post/Frame*.stl frame
dump dmplid all mesh/stl ${dumpstep} post/Lid*.stl lid

####################################RUN the simulation filling###########################################################

run ${fillsteps}

unfix ins

##################################RUN the simulation settling#############################################################

run ${settlesteps}

#################################RUN the simulation Open Door#############################################################
fix MoveLid all move/mesh mesh lid linear ${openvel} 0. 0.

run ${opensteps}

unfix MoveLid

#################################RUN the simulation Outflow###############################################################

run ${dischargesteps}
