Hello,
I am using aspherix for the simulation of particles inside cylinder-press mechanism to understand particle behavior under certain condition. however, I am facing problem to get resistance from the particles.
The stamp is pressing the particles in cylinder horizontally. but particles are leaving cylinder under pressure and the stamp is reaching the end of the cylinder(the stamp should not suppose to move forward due to lack of space and resistance of particles). which further shows the "ERROR: Mesh (id press): Mesh elements have been lost / left the domain. Please use 'boundary m m m' or scale/translate/rotate the mesh or change its dynamics".

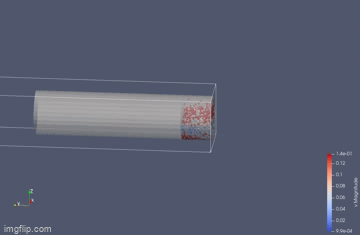

Could anyone please guide me about the problem? for more information, I am adding GIF file of the animation. Thank you.
| Attachment | Size |
|---|---|
 particle_burst.gif | 347.12 KB |
IronRobinson | Fri, 06/30/2023 - 17:40
