Visualizing Examples/Test Cases After Installing ParScale

Submitted by harrisromeo on Sat, 11/13/2021 - 06:38

Hi All,

I am new to simulations but a fast learner.

I installed ParScale (https://github.com/CFDEMproject/ParScale-PUBLIC) and am trying to run and visualize the example here (https://github.com/CFDEMproject/ParScale-PUBLIC/tree/master/examples/tes...).

I installed (WSL: Ubuntu 20.04 ) and compiled ParScale (after compiling pasc_fedora_fpic and symbolically linking to 'ParScale' in my 'home/username/bin' directory), following the instructions in "src/INSTALL".

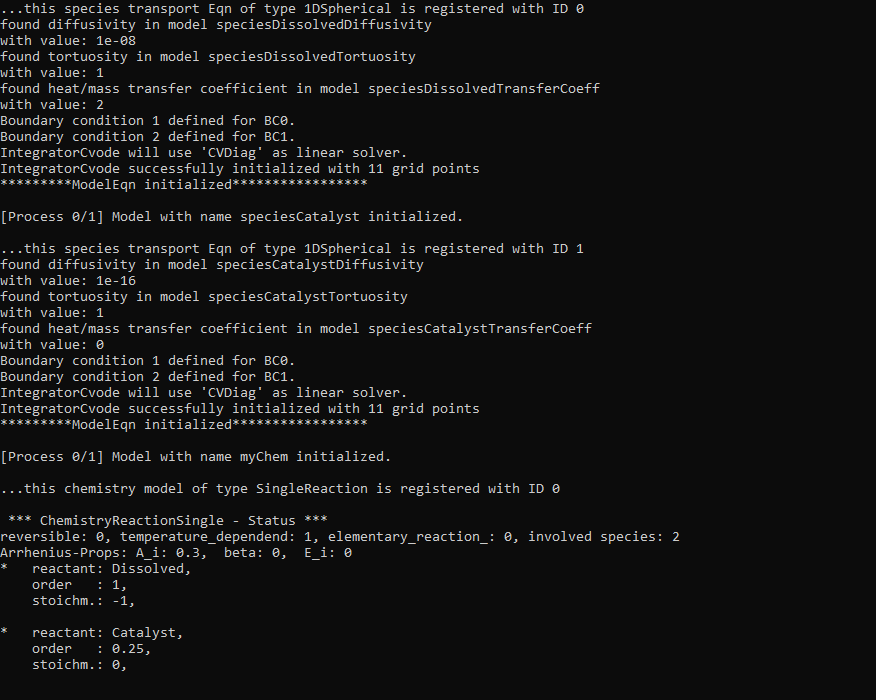

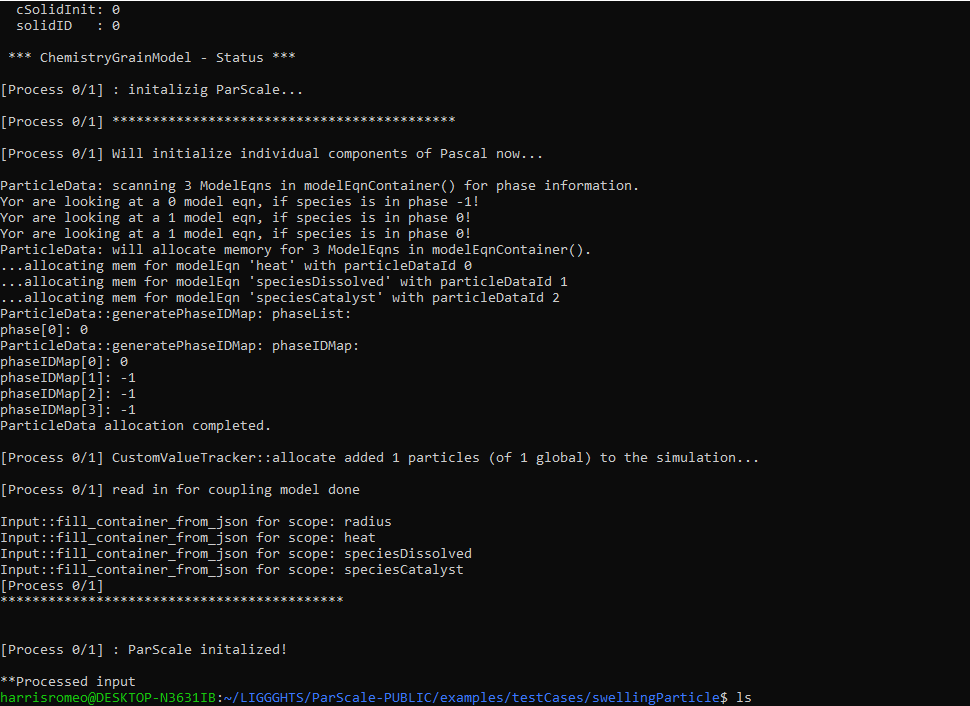

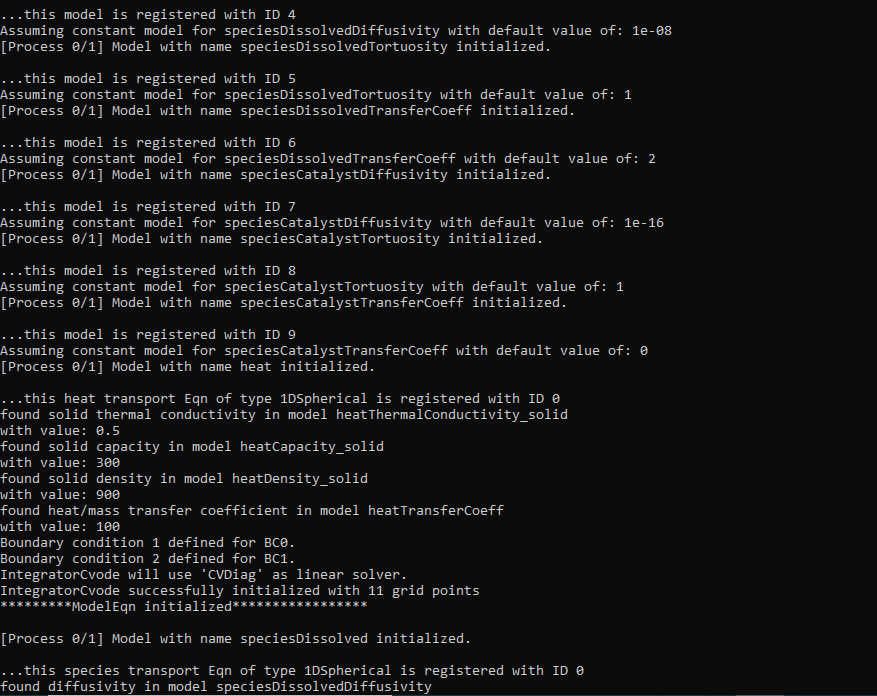

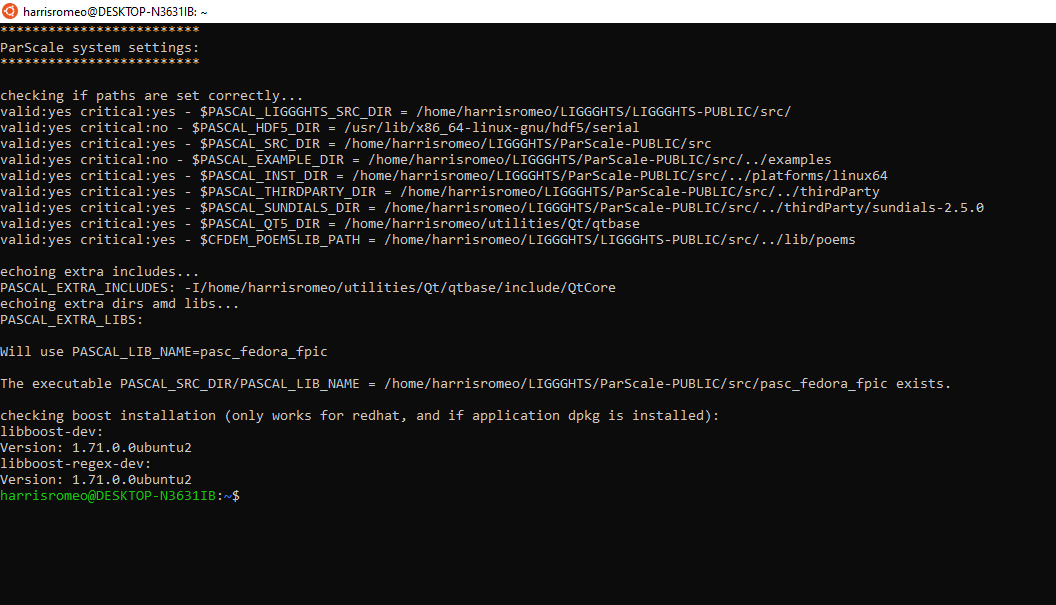

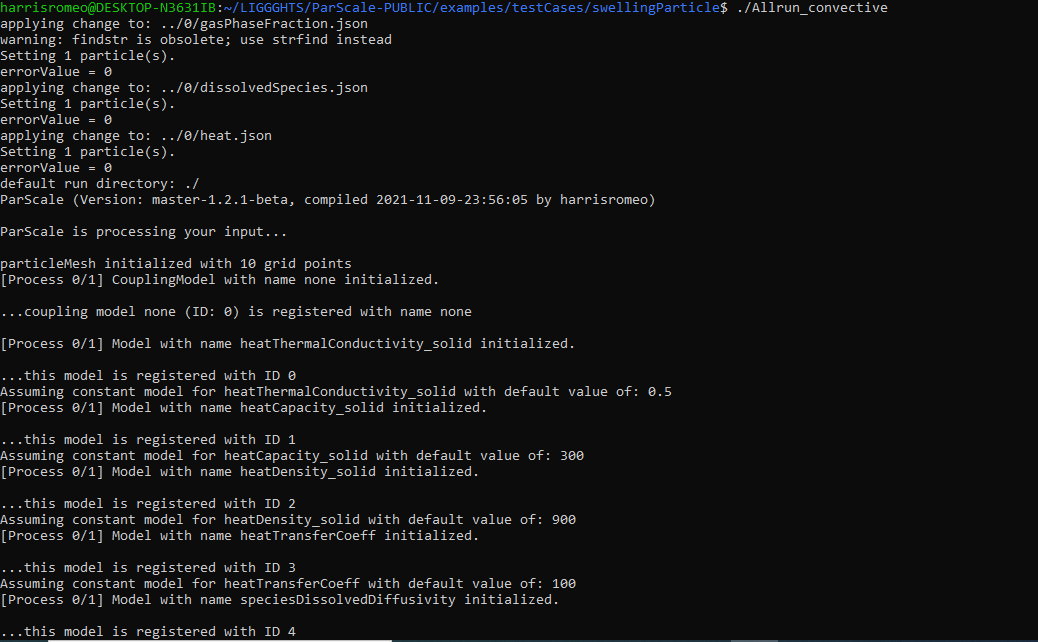

However, when I execute "Allrun_convective", I am unable to see any of the simulation plots (Not sure why). I have attached the various terminal displays (including the correctness of my system paths).

I am hoping to get clarity on how to visualize the simulations.

Regards,

Harrison
