TRIAXIAL TEST using LIGGGHTS 3.8.0

Submitted by foamer94 on Tue, 04/29/2025 - 02:32

Hello everyone,
I am a new user of LIGGGHTS. I have a very basic idea of coding in LIGGGHTS but not much. I have to perform TX CD test and for now I am just trying to insert particles in a box of dimensions 38 mm x 38 mm x 80 mm. However, I have been trying this since 3 days and I dont know how many syntaxes I have tried, but I am not able to insert and fully pack the box with particles of different PSD. I have been successful in generating the PSD but the box is always half full and particles seem to be suspended. The maximum I could enter is 5000 particles and not more. Can anyone help me in resolving this? If anyone can share the first portion of TX test where we develop the sample, that would be very helpful. Thanks!

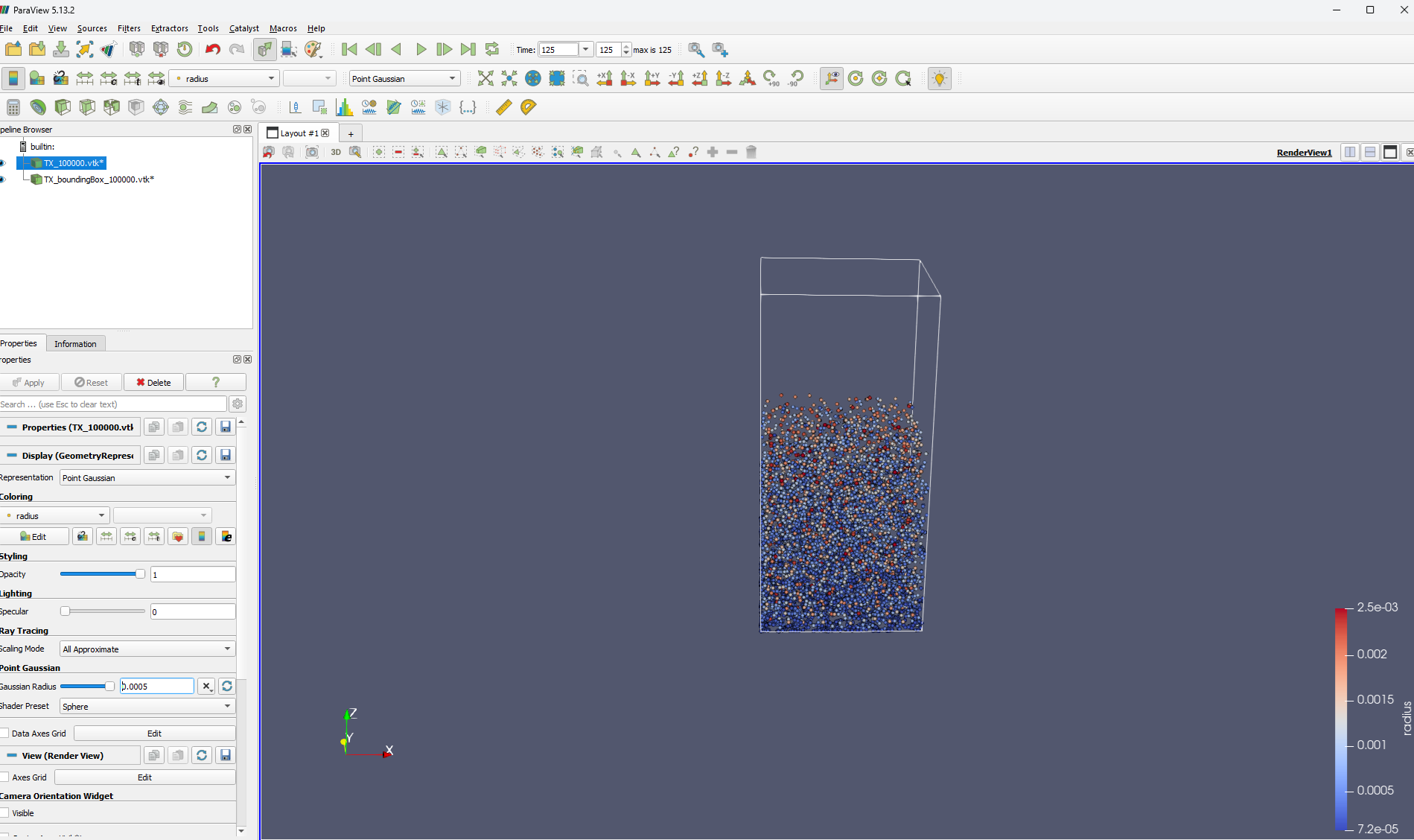

I am attaching the figure below to show you how my particles are getting organized. also, I am attaching my script.
Thanks!

If I can get a small hint, that would be very helpful.

AttachmentSize
Plain text icon Particle_insertion8.54 KB
Image icon Paraview_image348.84 KB
