Hi, my name is Joaquin Gonzalez, currently im doing a job in LIGGGHTS.
Its about a test of wear in a mining dump truck, when im in the multisphere case, i recieve the follow error: Energy calculated for multisphere particles is currently not correct.
i will be so thankful if someone can helpme whit this.

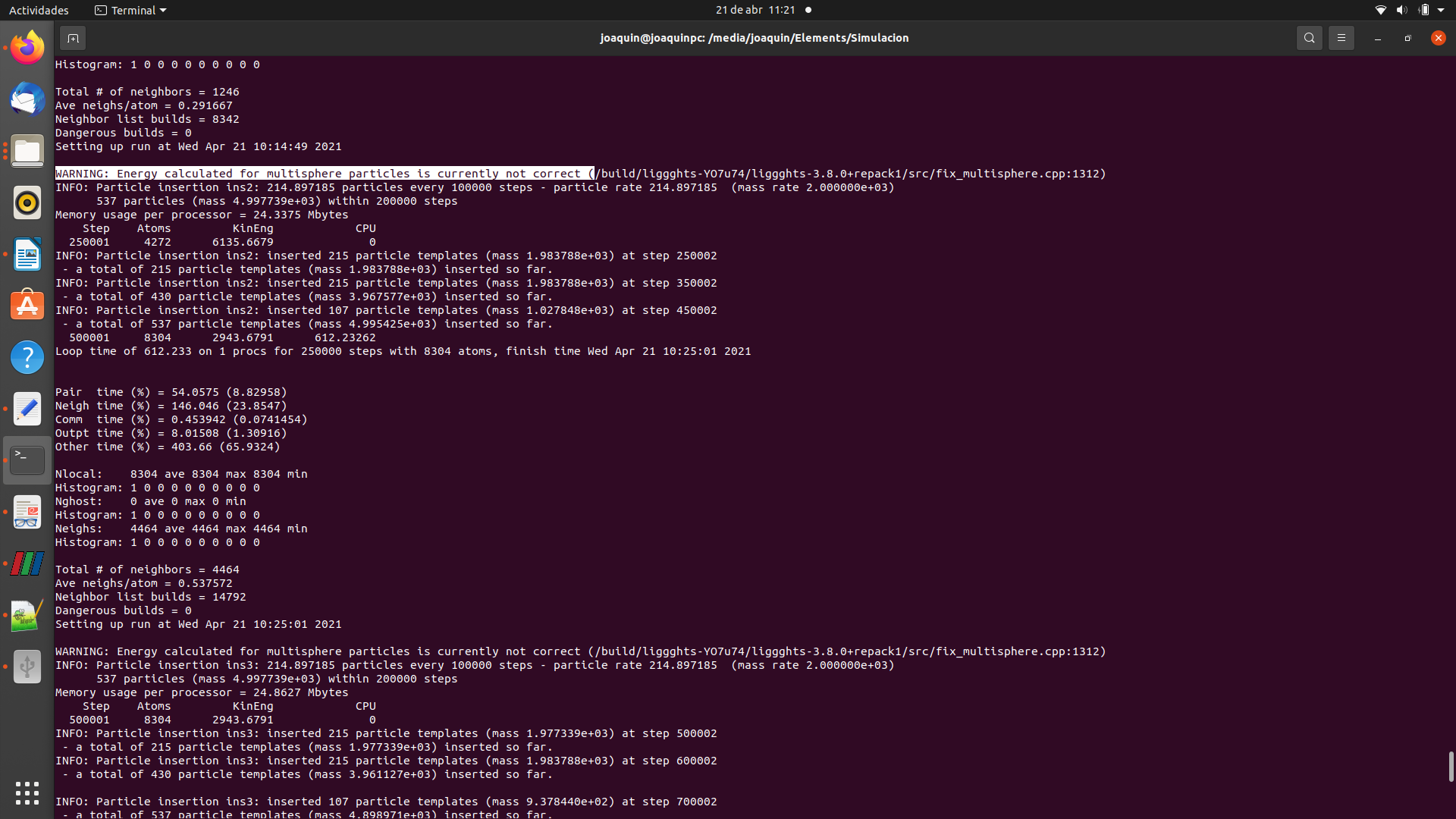

I attach the input script and a picture of the screen with the error
Thank you
| Attachment | Size |
|---|---|
 captura_de_pantalla_de_2021-04-21_11-21-48.png | 291.39 KB |
 cubos.txt | 14.59 KB |
mschramm | Wed, 04/21/2021 - 22:43
warning not error
Hello,
The script should continue to run without issue.
Are you needing accurate energy calculations for your simulation or do you just need to see the trend of the energy?
If your multisphere's are simply touching each other, than the energy calculation should be fine the way it is. If there are overlapping spheres, then there could be an issue.
Fraonez | Thu, 04/22/2021 - 06:04
thanks for answering actually
thanks for answering actually i dont need it, i just need the meassurement of wear. there is a overlapping spheres, what issue could be ? if i dont need it i just take off this line of the code ??
again thanks and take care...sorry for my english
